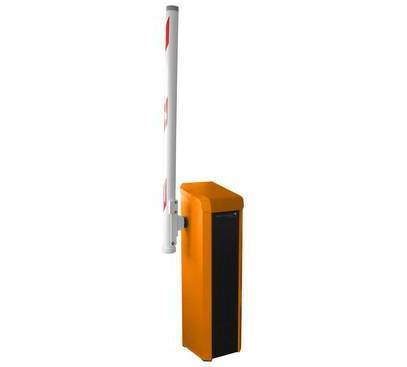

Magnetic MHTM Barrier Gate (6 to 10m)

Magnetic.Access XXL for lane widths between 6.0m and 10.0m.

Compared to other models of the award-winning MHTM™ MicroDrive series, these barriers come with an inner support frame that guarantees a very high stability.

The Magnetic.Access XXL barriers contain the complete barrier including the MGC Pro control unit,
a MicroBoom XL barrier boom and an integrated 2-channel loop detector. The functionality of the barrier can be easily extended via pluggable modules (optional).

Click To View MHTM Boom Gate Access Magnetic Automation Video

• tall housing with straight barrier boom (MicroBoom XL)
• lane width max. 10.0 m
• safe control unit (EN 12849)
• 80% more connectivity (I/O, TCP/IP,RS-485, etc.)
• power consumption max. 30 W
• maintenance-free MHTM™ XL drive unit
• high ease of use

Design and quality Magnetic.Access XXL barriers impress with sophisticated and enduring design. The modularly designed housing made of extruded aluminium profiles and the inner steel frame with surface protection offer best protection against corrosion. The MHTM™ product line is winner of the red dot award: product design 2012.



Control unit   The control unit MGC Pro is compliant with EN 13849. It is located directly underneath the top cover and can be accessed from all sides. Configuring the barrier is easily accomplished via the LCD’s intuitive user interface that can be navigated with just 4 push-buttons. The functionality may be easily extended via optionally available modules.



Drive unit The MHTM™ XL drive unit is not only astonishing because of its small dimensions. You also get a high torque with an extremely minimized power consumption. The high torque guarantees best operation even under severe weather conditions (heavy winds, snow, etc.). The motor, motor control and gearing are all combined in one compact drive unit.



MicroBoom XL MicroBoom XL barrier booms are straight booms designed especially for Magnetic.Access XL/XXL barriers. Up to 6.0m the boom is made of one solid boom profile, longer booms have an additional connector and a smaller boom profile as extension. MicroBoom XL booms are equipped with a foamed edge protection which offers best protection against damages and harm to people.
