Magnetic MHTM Barrier Gate (3 to 6m)

Magnetic MHTM™ MicroDrive barriers are the latest evolution in the market. They offer a lot of exclusive characteristics, e.g. Sustainability, Features, Safety and Security
Enquire
Magnetic.Access barriers were specifically designed for the use in low to high frequented sites, e.g. industrial sites, residential buildings or small parking areas. Additionally, access roads with a lane width of up to 6.0m can be efficiently and reliably secured.

The Magnetic.Access range does not only offer long-life cycle, great reliability and quality but impresses with sophisticated and enduring design, extremely low operational costs, high ease of use and almost maintenance-free technology.

Depending on your demand, you may choose between 3 different barrier models: While the Magnetic.Access models are the all-round barriers, the Pro models offer more functionality and options. The Select models offer all customising options at favourable prices.

Click To View MHTM Boom Gate Access Magnetic Automation Video

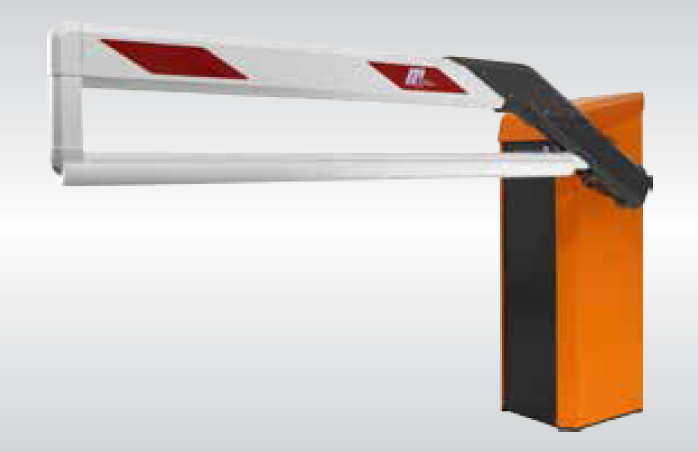

EVB 01
Design and quality
MHTM™ MicroDrive barriers impress with sophisticated and enduring design. The modularly designed housing made of extruded aluminium profiles and a base frame made of stainless steel (both powder-coated) offers best protection against corrosion. The MHTM™ product line is winner of the red dot award: product design 2012.
mhtm control
Control unit
The control unit MGC / MGC Pro is compliant with EN 13849. It is located directly underneath the top cover and can be accessed from all sides. Configuring the barrier is easily accomplished via the LCD’s intuitive user interface that can be navigated with just 4 push-buttons.
mhtm drive
Drive unit
The drive unit of MHTM™ MicroDrive is not only astonishing because of its small dimensions. You also get a high torque with an extremely minimized power consumption. The high torque
guarantees best operation even under severe weather conditions (heavy winds, snow, etc.). The motor, motor control and gearing are all combined in one compact drive unit.
mhtm varioboom
VarioBoom
The VarioBoom concept enhances the visibility of the barrier boom which may be even more increased installing optionally available accessories. It comes equipped with a foamed edge protection which offers best protection against damages and harm to people. Thanks to the modular design of the barrier boom single elements can be replaced in case of damage.
  • Tech Data
  • Features
  • Brochure

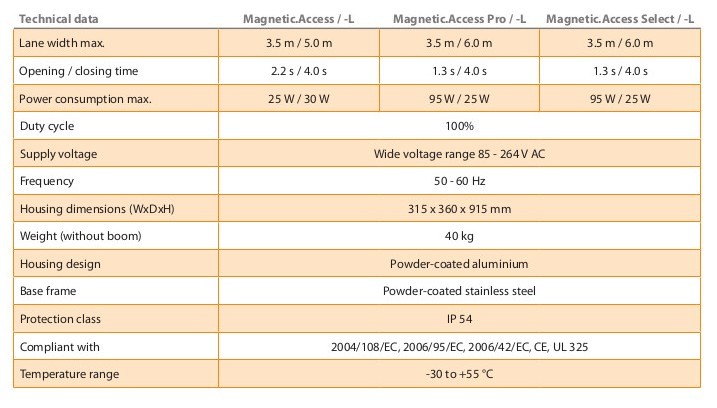

MHTM - technical data

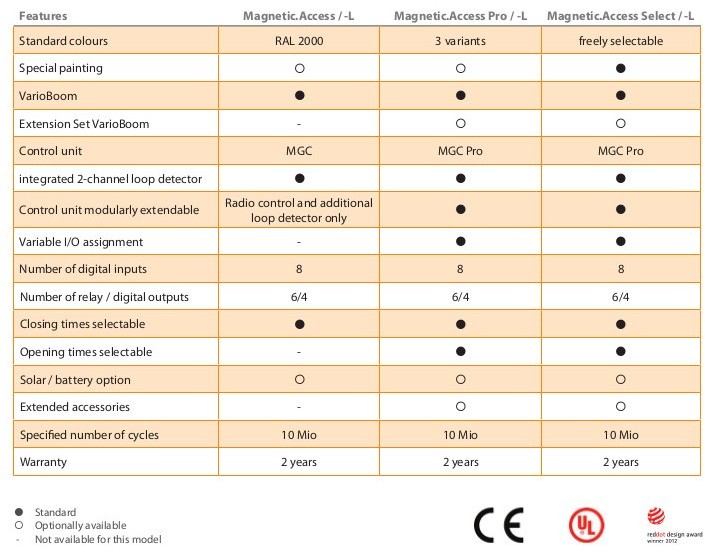

MHTM -  features
Download an information sheet: pdfdownload-628
