452MF3123-12

452 MF 3123-12

Multisport - SuperPro
Enquire

Model

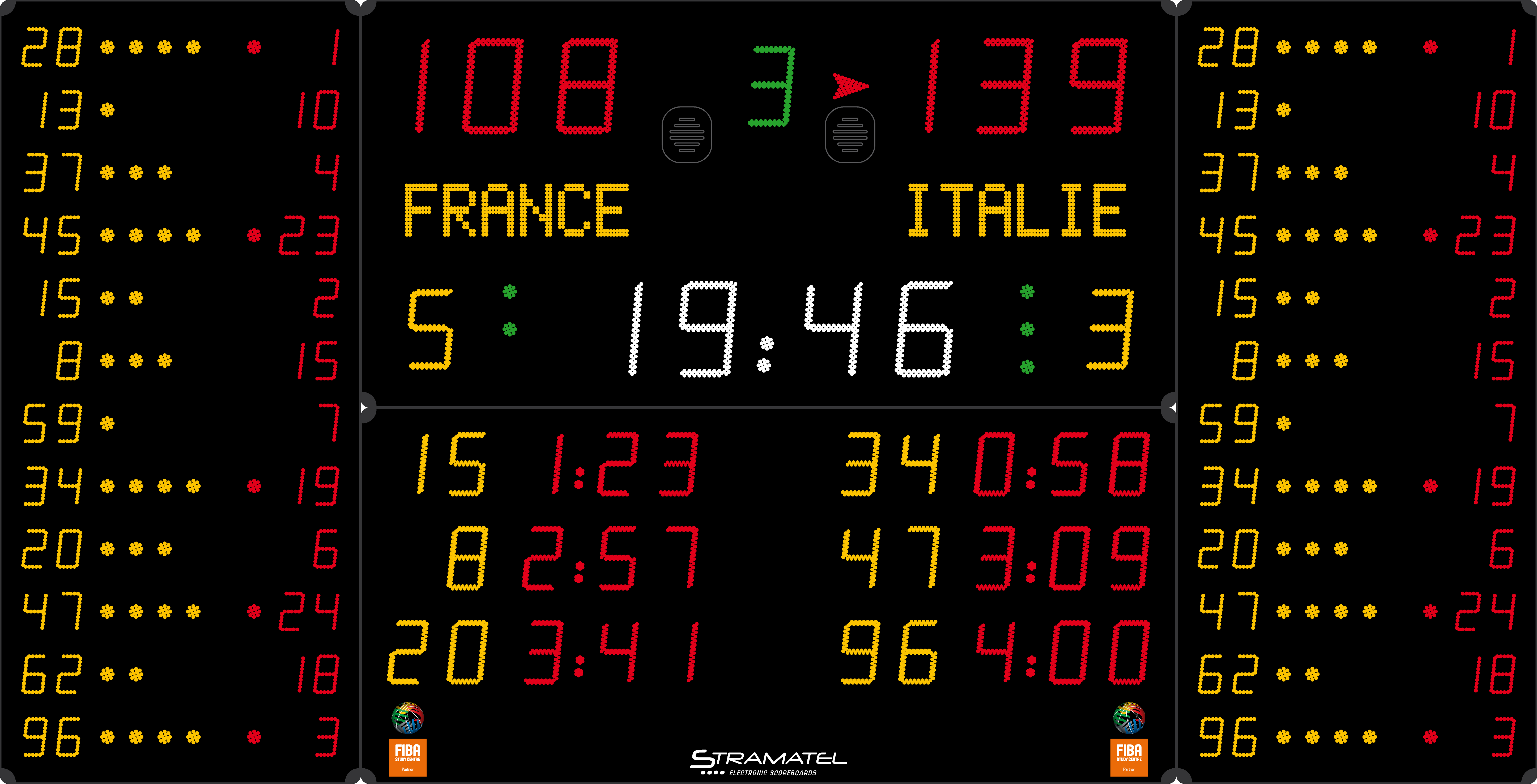

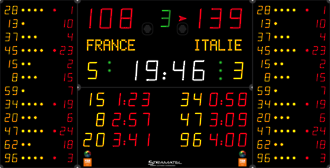

452MF3123-12                     With Programmable names and player names

BASKET BALL – HANDBALL – VOLLEYBALL – TENNIS –TABLE TENNIS – BADMINTON – FUTSAL – RINK HOCKEY, IN LINE HOCKEY– ICE HOCKEY - UNIHOCKEY / FLOORBALL – NETBALL – BOXING – FREE MODE

Composition

  • 1 scoreboard made of 4 modules
  • 2 control consoles,
  • 1 start/stop timer console
  • 1 Keyboard
  • 2 carrying case for control consoles
  • 3 mains cables
  • Junction box and transmission cables (for cable controlled version)
  • Operating and installation instructions
  • (Smartphone not included)

Description

Use: Indoor
Transmission: Radio (868 MHz) or cable
Readability: 160m, angle >160°
Dimensions: 4900 x 2500 x 90mm
Weight: 236 kg
Power supply: 230V / 50-60Hz Power consumed: 543 VA
Protection: Unbreakable mat polycarbonate front face (DIN 18032-3)
Horn 2x integrated horns, total = 119dB at 1m
Mains cable (supplied) 3x25 m – Type: 230V, 3G, 0.75 mm
Cable controlled: For cable controlled models or radio controlled models with cable set:
Junction Box + 50 m transmission cable (scoreboard/junction box) –
Type: phone cable 2 pairs 6/10th + 10 m transmission cable DIN/DIN (junction box/console)
  • Display Functions
  • Control Console
  • Options
  • Brochure
452MF3123
452MF3123
452MF3123
Download the 452MF3123_12 Brochure pdfdownload-628
