SC24_TP_EL

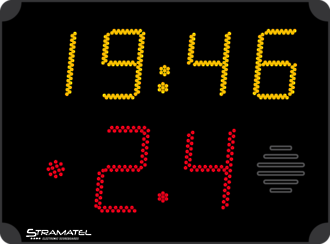

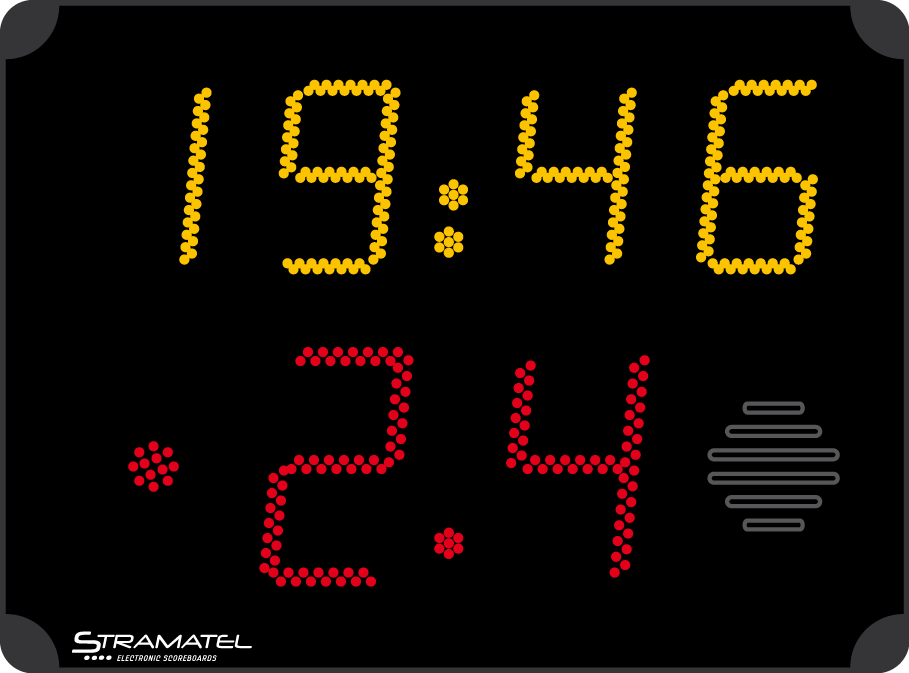

SC24 Timer Pro EL

Multisport - Shot Clocks and Peripherals
Enquire

Model

SC24 Timer Pro EL

BASKET BALL

Composition

  • 2x display units
  • 1 control console
  • 1 carrying case for control console
  • 2 mains cable
  • 2x junction boxes and transmission cables
  • Operating and installation instructions

Description

Use: Indoor
Transmission: Radio (868 MHz) or cable. Work only with STRAMATEL Multisport scoreboard
Readability: 110m, angle >160°
Dimensions: 770 x 570 x 90mm
Weight: 10 kg
Power supply: 230V / 50-60Hz                 Power consumed: 123 VA
Protection: Unbreakable matte polycarbonate front face (DIN 18032-3)
Horn: Internal horn 116dB at 1m
Mains cable (supplied): 1x25 m - Type: 230V, 3G, 0.75 mm
Cable controlled: Junction Box + 25m transmission cable (scoreboard/junction box) -
Type: DIN/DIN + 25 m transmission cable (junction box/main junction box) - Type: phone cable 2 pairs 6/10th



  • Display Functions
  • Control Console
  • Options
  • Brochure
SC24TPEL-
SC24TPEL-
SC24TPEL-
Download the SC24 Timer Pro EL Brochure pdfdownload-628
