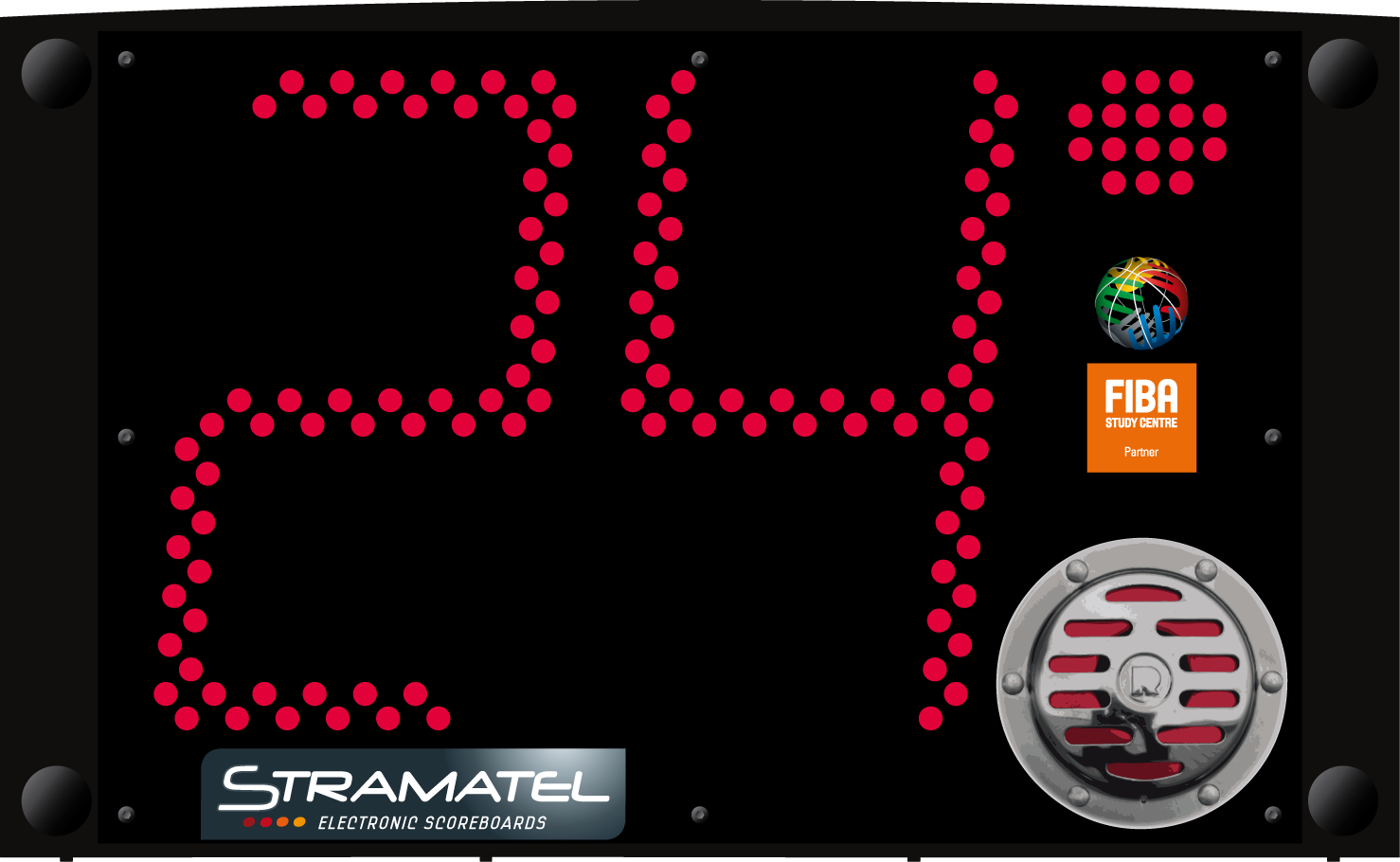

SC24

SC 24

SC 24
Multisport - Shot Clocks and Peripherals
Enquire

Model

SC 24

BASKET BALL

Composition

  • 2x display units
  • 1 control console
  • 1 carrying case for control console
  • 2 main cables
  • 2 polycarbonate stands
  • Operating and installation instructions

Description

Use: Indoor
Transmission: Radio (868 MHz) or cable - work ONLY with STRAMATEL main scoreboard
Readability: 100m, angle >160°
Dimensions: 500 x 300 x 65mm
Weight: 2.5 kg per unit
Power supply: 230V / 50-60Hz
Power consumed: 33 VA
Protection: Unbreakable matte polycarbonate front face (DIN 18032-3)
Integrated Horn: 96dB at 1m
Mains cable (supplied): 2 x 25 m - Type: 230V, 3G, 0.75 mm


  • Display Functions
  • Control Consoles
  • Options
  • Brochure
SC24
SC24
SC24
Download the SC 24 Brochure pdfdownload-628
