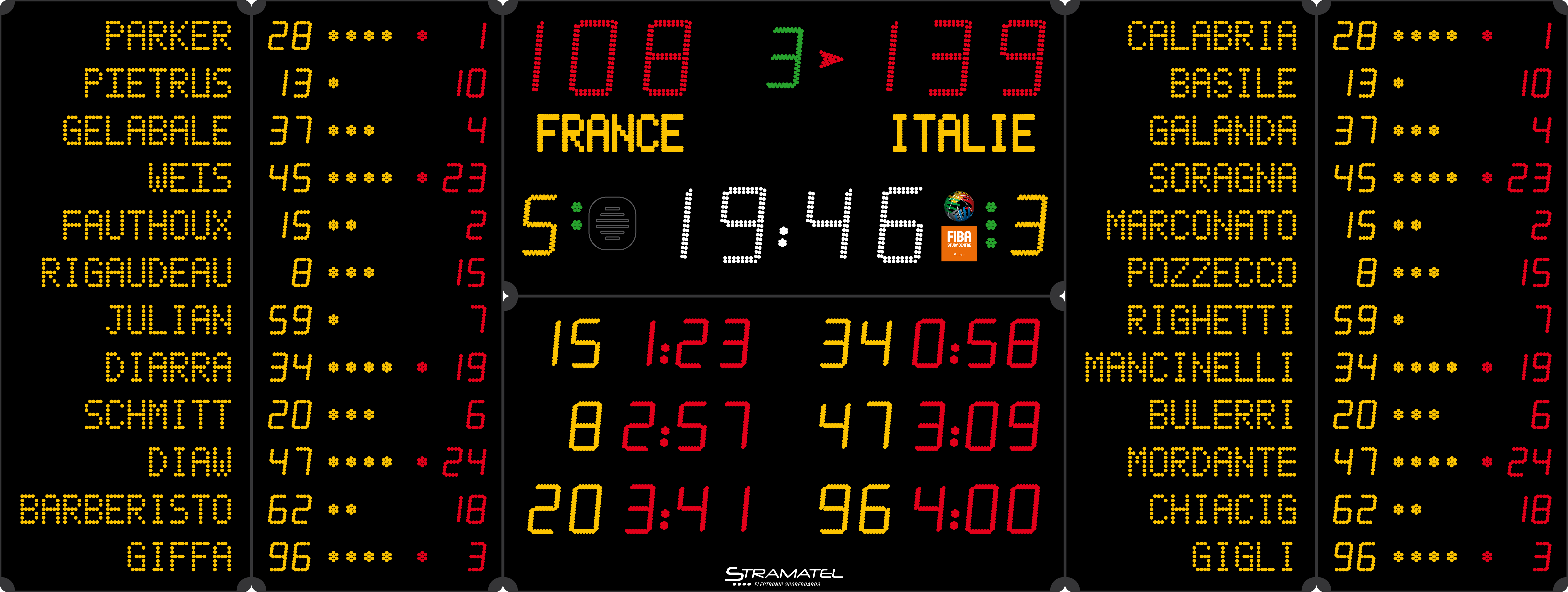

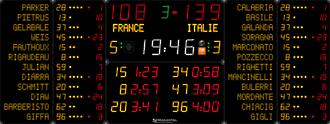

452 MB 3123-123
Multisport - Pro
Model
452MB3123-123 With Programmable Names
BASKET BALL – HANDBALL – VOLLEYBALL – TENNIS –TABLE TENNIS – BADMINTON – FUTSAL – RINK HOCKEY, IN LINE HOCKEY– ICE HOCKEY - UNIHOCKEY / FLOORBALL – NETBALL – BOXING – FREE MODE
Composition
1 scoreboard made of 6 modules
2 control consoles, 1 start/stop timer console
1 PC keyboard
2 carrying case for control consoles
3 mains cable
Junction box and transmission cables (for cable controlled version)
Operating and installation instructions
Description
Use:
Indoor
Transmission:
Cable. Radio transmission (868 MHz) as an option
Readability:
110m, angle >160°
Dimensions:
5300 x 2000 x 90mm
Weight:
170 kg
Power supply:
230V / 50-60Hz Power consumed: 610 VA
Protection:
Unbreakable mat polycarbonate front face (DIN 18032-3)
Horn
1x internal horn, 116dB at 1m
Mains cable (supplied)
3x20 m – Type: 230V, 3G, 0.75 mm
Cable controlled:
For cable controlled models or radio controlled models with cable set:
Junction Box + 50 m transmission cable (scoreboard/junction box) –
Type: phone cable 2 pairs 6/10th + 10 m transmission cable DIN/DIN (junction box/console)
Display Functions
Control Console
Options
Brochure
Download the 452 MB 3123-123 Brochure
