452MB302312

452 MB 3023-12

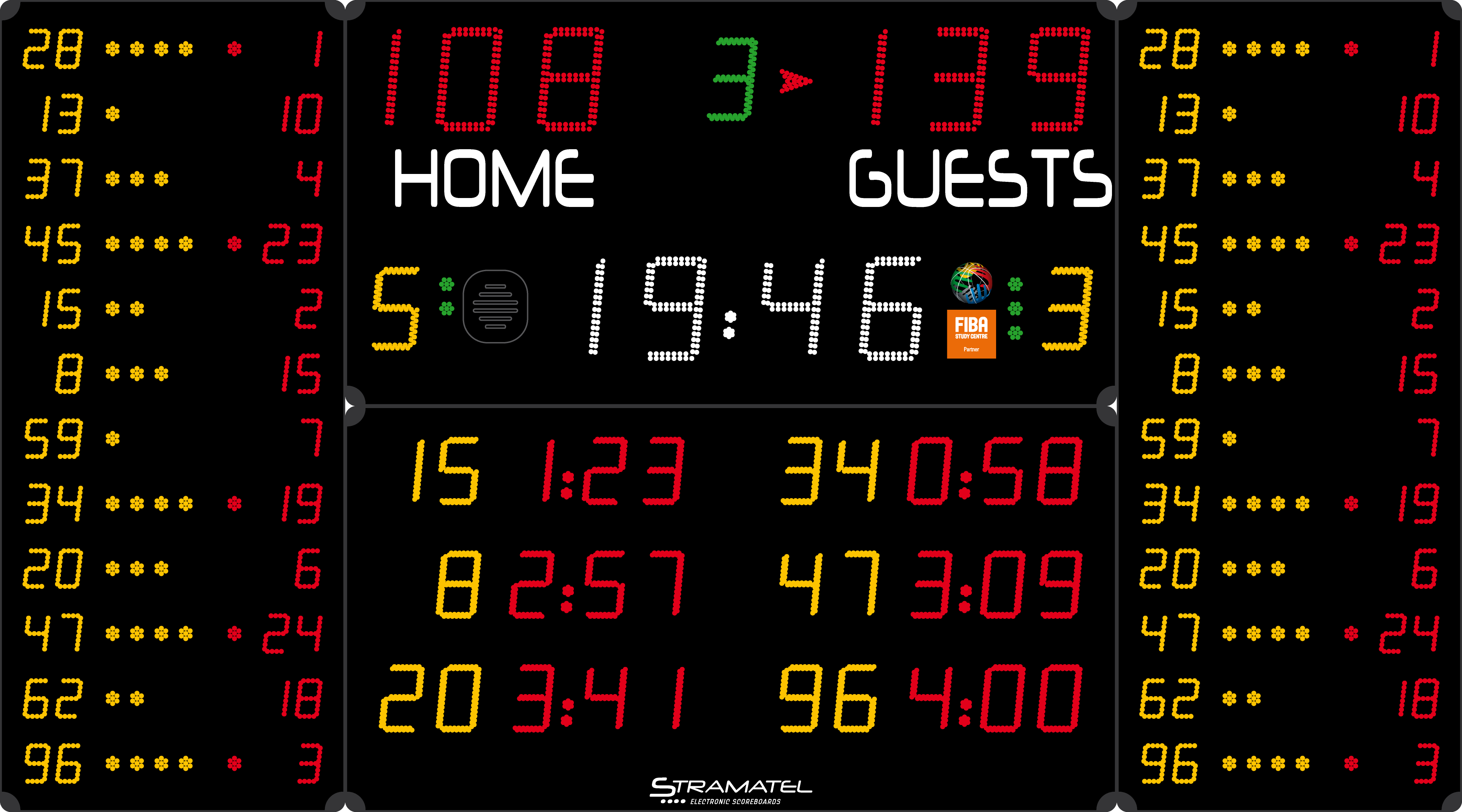

Multisport - Pro
Enquire

Model

452MB3023-12                     With Home / Guests stickers

BASKET BALL – HANDBALL – VOLLEYBALL – TENNIS –TABLE TENNIS – BADMINTON – FUTSAL – RINK HOCKEY, IN LINE HOCKEY– ICE HOCKEY - UNIHOCKEY / FLOORBALL – NETBALL – BOXING – FREE MODE

Composition

  • 1 scoreboard made of 4 modules
  • 2 control consoles, 1 start/stop timer console
  • 2 carrying cases for control consoles
  • 3 mains cable
  • Junction box and transmission cables (for cable controlled version)
  • Operating and installation instructions

Description

Use: Indoor
Transmission: Radio (868 MHz) or cable
Readability: 110m, angle >160°
Dimensions: 3600 x 2000 x 90mm
Weight: 116 kg
Power supply: 230V / 50-60Hz Power consumed: 357 VA
Protection: Unbreakable mat polycarbonate front face (DIN 18032-3)
Horn 1x integrated horn, 116dB at 1m
Mains cable (supplied) 3x20m – Type: 230V, 3G, 0.75 mm
Cable controlled: For cable controlled models or radio controlled models with cable set:
Junction Box + 50 m transmission cable (scoreboard/junction box) –
Type: phone cable 2 pairs 6/10th + 10 m transmission cable DIN/DIN (junction box/console)



  • Display Functions
  • Control Console
  • Options
  • Brochure
452MB3023
452MB3023
452MB3023
Download the 452 MB 3023-12 Brochure pdfdownload-628
