CALYPSO

CALYPSO - Modular Numeric & Alphanumeric Scoreboards

Enquire
CALYPSO scoreboards utilise advanced, high luminosity LED technology to make it suitable for both indoor and outdoor use. CALYPSO is fully compatible with Swiss Timing products thanks to its QUANTUM protocol for sports such as swimming, water polo, synchronised swimming and diving.

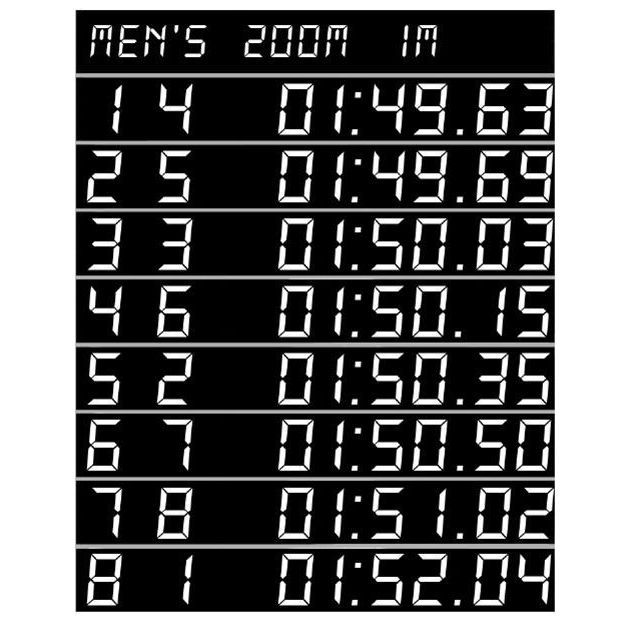

Numeric scoreboards are designed to display the lane, the rank, and timings. The alphanumeric types are designed to display some information about the competition and the current record.

Two numeric CALYPSO versions are available : master and slave; the master has an integrated power supply plus driver, and can be used to control up to three slave devices.

CALYPSO digits are 24 cm high, each consisting of 150 white LEDs, whose brightness automatically adapts to ambient light conditions. This ensures that CALYPSO scoreboards always work at the optimum contrast and brightness to provide best visibility at distances up to 120 m.

The compact grey aluminium housing has an acrylic finish to guarantee the best protection against atmospheric conditions. The scoreboard is designed to be installed on a wall with all module to module wiring hidden from view. Cleaning and maintenance are eased by an access from the front of the scoreboard.

CALYPSO scoreboards are made with the highest quality materials and all components are thoroughly tested before assembly.
  • Top features
  • Specifications
  • Available kits & options
  • Optimized contrast & brightness
  • Indoor & outdoor use
  • QUANTUM compatible
  • Viewing distance up to 120 m
  • Easy maintenance from front
  • Various kits available (see options)
  8 Digits Alphanumeric
Article number : 3403.981 (1 line, master) 3403.970
Dimensions per line : 2400 x 340 x 94 mm 2400 x 340 x 94 mm
Weight : 18 kg (master), 14 kg (slave) 16 kg
Display type : 7-segments digits, 2x colon, white LED Alphanum. 93 white LED
Digits height : 24 cm 15 cm
Viewing distance : up to 120 m up to 120 m
Power supply : 115/230 VAC 115/230 VAC
Power consumption : 50 VA per line (typ.),
90 VA per line (max.)
150 VA

Data connection : RS422, QUANTUM & ARES compatible
(Bluetooth : see options)
RS422, QUANTUM & ARES compatible
(Bluetooth : see options)
Operating temperature : 0 to +50°C 0 to +50°C
Storage temperature : -30 to +85°C -30 to +85°C
Protection : IP54 IP54
Certification : ce and rohs RoHS compliant ce and rohs RoHS compliant
3403.981 : OMEGA CALYPSO 8 digits / 1 line 3404.981.BT
3403.984 : OMEGA CALYPSO 8 digits / 4 lines 3403.984.BT
3403.986 : OMEGA CALYPSO 8 digits / 6 lines 3403.986.BT
3403.988 : OMEGA CALYPSO 8 digits / 8 lines 3403.988.BT
3403.980 : OMEGA CALYPSO 8 digits /10 lines 3403.980.BT

3403.970 : OMEGA CALYPSO Alphanumerical 17 chars line
Text line using matrix LED white digits (15 cm).
Max. 2 lines can be addressed by the QUANTUM swimming program, to show on line "1" some event / heat / distance information, and on line "2" the record of the event.
Can also be used as a free text line.
3403.611 : Cable RS422 IN TU 7pF - 3m
1906.100 : Cable TU 7pM - SubD 9pM (screw) - 100 m winder
(Mobile connection cable from QUANTUM to CALYPSO)

Mounting kits
  Vertical Horizontal
(include 68 cm intermediate plates)
for 1 line : 3403.901
for 2 lines : 3403.902
for 4 lines : 3403.904
for 6 lines : 3403.906 3403.926 (3+3 lines)
for 8 lines : 3403.908 3403.928 (4+4 lines)
for 10 lines : 3403.910 3403.930 (5+5 lines)
for 11 lines : 3403.911
for 12 lines : 3403.912 3403.932 (6+6 lines)
