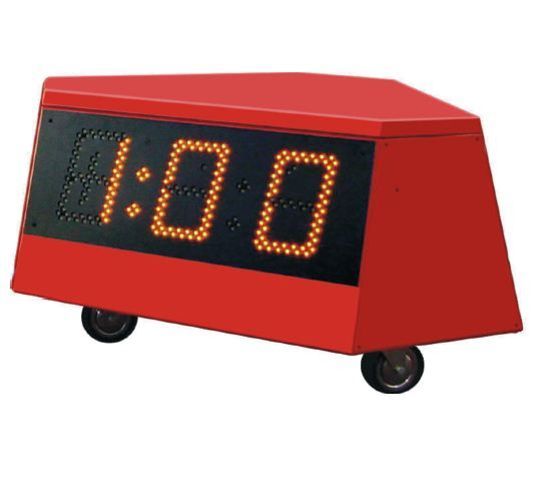

BOREAS

Concentration Clock - with wind and temperature measurement

Enquire
The BOREAS displays a concentration clock, ambient temperature and when connected to a SIROCCO wind gauge will display the wind speed. When connected to a Scan'O'Vision photofinish camera, the wind speed can be automatically measured and displayed (without field operator).

The BOREAS can also be used as a lap counter which makes it a real all-in-one compact field display.

The BOREAS 150 has 16 cm digits with extra bright LEDs (viewing distance up to 80 m), while the BOREAS 250 has extra large 26 cm digits (viewing distance up to 130 m).

A light sensor automatically adapts the display brightness to the ambient light conditions to provide the optimum readability.

The brightness can also be manually chosen within 15 steps. The three sided design ensures maximum visibility from all angles.

An internal battery provides 8 hours of autonomy. Moreover, it is mounted on wheels for maximum mobility.

The set is delivered with an easy to use handheld console with keyboard and display.
  • Top features
  • Clock specifications
  • Controller specs
  • Options
  • Concentration clock
  • Wind gauge function (optional, see SIROCCO unit below)
  • Temperature display
  • Lap counter display
  • Internal horn
  • Stand-alone capacity of up to 8 hours with internal battery
  • RS422 serial transmission to results system or OSV photofinish camera
  • Automatic or manual brightness adjustment
BOREAS sets 3436.920 and 3436.921 include the controller 3436.730 with a 3.5 m cable.

  BOREAS 150 BOREAS 250
Article number : 3436.920 3436.921
Dimensions : 95 x 83 x 45 cm 120 x 105 x 56 cm
Weight : 33 kg 40 kg
Display (amber LEDs) : 16 cm digits 26 cm digits
Viewing distance : 80 m 130 m
Material : aluminium
Power supply : 100-240 VAC, 50/60 Hz
Power consumption : 110 VA (max.) 150 VA (max.)
Battery autonomy : 8 hours
Data connections : DH : Tuchel 7pF (RS422)
Controller : SubD 9pM (RS232)
Wind sensor : Tuchel 7pM (RS422)
Operating temperature: 0 to +50°C
Storage temperature : -25 to +70°C
Relative humidity : 80% (non condensing)
Protection : IP54
Certifications : ceand rohsRoHS compliant
Article number : (this item is included in the sets)
Dimensions : 160 x 95 x 31 mm
Weight : 0.5 kg
Display (amber LEDs) : 2 x 16 characters LCD
Keyboard : 20 keys keypad
Material : ABS
Power supply : 12 VDC
(powered by BOREAS)
Power consumption : 1 VA
Data connections : SubD 9pF (RS232)
Operating temperature: 0 to +50°C
Storage temperature : -30 to +85°C
Relative humidity : 80% (non condensing)
Protection : IP54
Certifications : and RoHS compliant
3436.910 : SIROCCO - BOREAS/OSV Remote wind gauge (includes 5 m cable)

9051.6336 : Multipurpose tripod (for above wind gauge)
