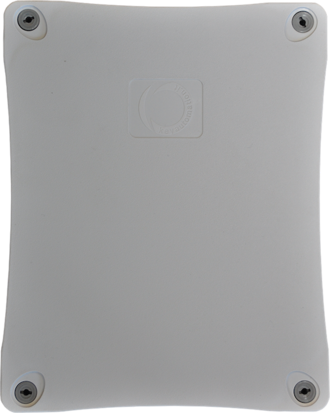

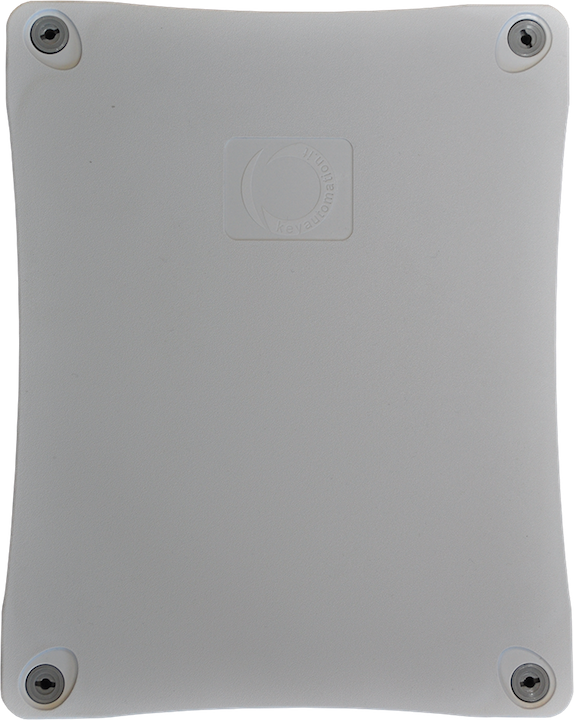

BOXLED Main Board for LED Lights Control

Developed for the automatic control of LED lights, to illuminate the
area around the gate entry, frames and driveways

4 independent outputs to control up to 15 lights each (60 lights total)

Output for night sensor QUADRO

Built-in receiver

Possibility to use 3 different outputs to control RGB lights

Programming with buttons or via display DYL

Main features:

• 4 led outputs
• 750mA per output (max. with 15 lights) with overload protection
• output for external light sensor
• display connection DYL (optional)
• built-in radio receiver
• suitable up to 30 codes
• output leds
• fast programming button
• external antenna onboard
• 230Vac

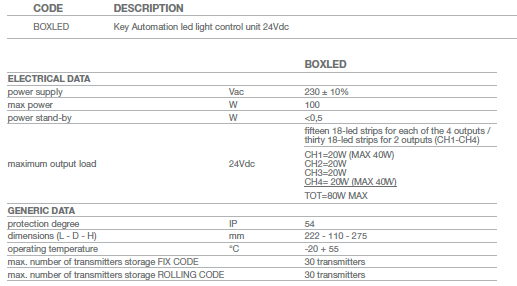

Models
Accessories
Kit

BOXLED Main Board for LED Lights Control
