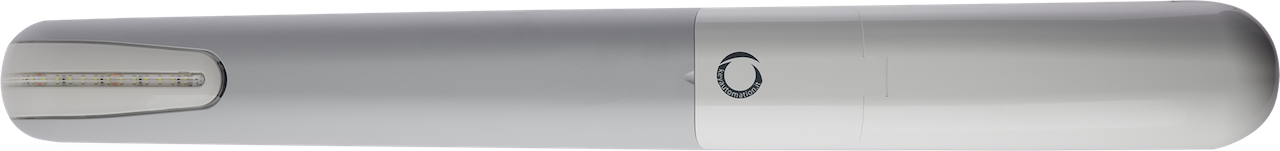

RAY - Electromechanical Gear Motor For Swing Gates 3m and 4m

RAY - Electromechanical Gear Motor For Swing Gates With Leaves Up To 3m and 4m, 24 Vdc
Built-in LED light in the frontal part of motor body, to light up gate entrance and define width of
the passage at night

High technological materials resistant to weather conditions

UV-resistant plastic covers, FASTLINE drak grey cover for RAY3024F

Extremely silent mechanics, protected by robust die-casted and powder-coated aluminum body

Alligned front and rear mounting brackets to ease motors installation

Manual unlock possible with Sub transmitter. Easy and user friendly

RAY FAST: opening speed at 90° in 10 seconds *

Compatible with 24 Vdc control unit 14A (page 72 for technical details)
  • Models
  • Data
  • Kit
  • Information Sheet
RAY - 1 - Models-976

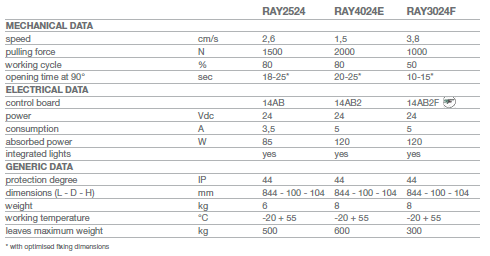

RAY - 2 - Data

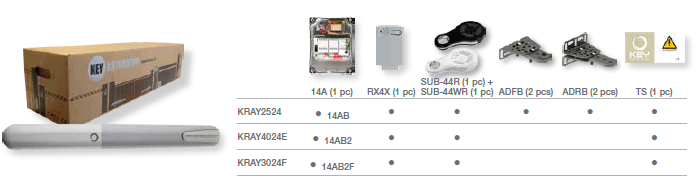

RAY - 3 - Kit
RAY - 4
Download an information sheet: pdfdownload-628
