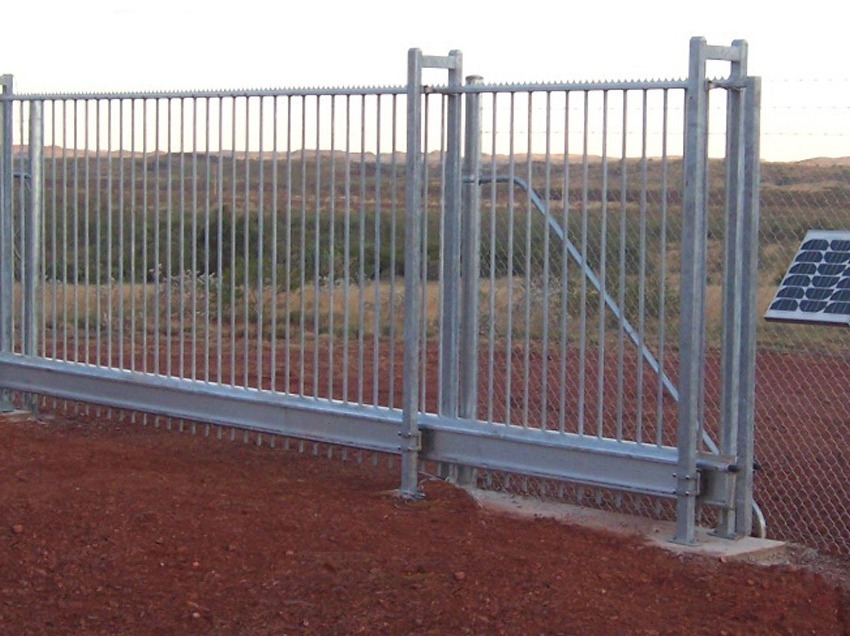

MHG Modular Cantilever Gate

The MHG modular cantilevered sliding gate is ideal for remote locations as it does not require ground tracks or overhead rails. The MHG can be transported on a pallet and can be assembled on site without requiring specialist lifting equipment. The solar panel option is popular in areas where electrical supplies are challenging.
Enquire

MHG Modular Cantilever Sliding Gate DS 07 13 Page 1 Image 0006
Construction
The core of the gate consists of profiled aluminium upper and lower beams with end plates, which are tensioned internally with high tensile cables. Fully welded RHS galvanised steel is used for the frames and posts. The gate runs on two double, fully adjustable wheels and is further guided at the top by two maintenance free wheels. Powder coating is optional from a wide selection of powder coating colours.

MHG Modular Cantilever Sliding Gate DS 07 13 Page 1 Image 0003
Drive System
The construction of the MHG gate system allows for a variety of motors and controllers to be used dependant on the required duty cycle of the gate. Please contact your local Magnetic Automation office for further details
MPH Speed Gate safety
Safety Devices
Standard safety devices include PE beams, inductive loop detectors and signage for use on automatic gate systems. Optional safety devices include flashing lights, audible alarms, safety edge strips, safety light curtains and polycarbonate clear safety screens.
MHG access
Accessories
The MHG gate offers a convenient and versatile remote control function which can be operated from multiple locations such as gatehouse or central surveillance desk. Bi-parting gates can also be applied to wide roadways.  Solar panel option also available.
  • Tech Data
  • Drawings
  • Brochure

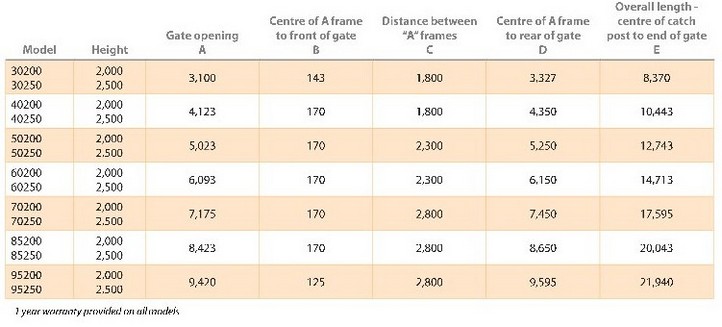

MHG specs

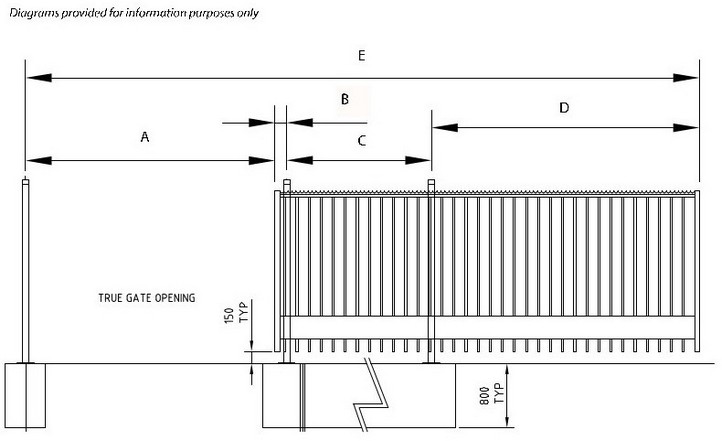

MHG drawings
Download an informaiton sheet: pdfdownload-628
