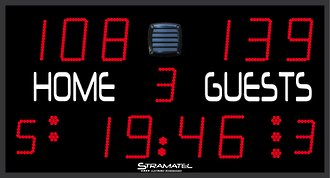

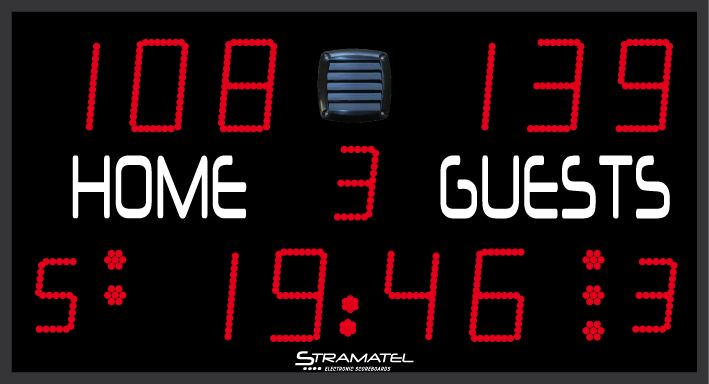

452XME3000

452 XME 3000

Multisport - Eco
Enquire

Model

452ME3000                     With Home / Guests stickers

BASKET BALL – HANDBALL – VOLLEYBALL – TENNIS –TABLE TENNIS – BADMINTON – FUTSAL – RINK HOCKEY, IN LINE HOCKEY– ICE HOCKEY - UNIHOCKEY / FLOORBALL – NETBALL – BOXING – FREE MODE

Composition

  • 1 scoreboard
  • 1 control console
  • 1 carrying case for control consoles
  • 1 mains cable
  • Junction box and transmission cables (for cable controlled version)
  • Operating and installation instructions

Description

Use: Outdoor
Transmission: Radio (868 MHz) or cable
Readability: 60m, angle >160°
Dimensions: 1200 x 650 x 90mm
Weight: 16 kg
Power supply: 230V / 50-60Hz Power consumed: 72 VA
Protection: Unbreakable mat polycarbonate front face (DIN 18032-3)
Integrated Horn 116dB at 1m
Mains cable (supplied) 5 m – Type: 230V, 3G, 0.75 mm
Cable controlled: For cable controlled models or radio controlled models with cable set:
Junction Box + 50 m transmission cable (scoreboard/junction box) –
Type: phone cable 2 pairs 6/10th + 10 m transmission cable DIN/DIN (junction box/console)



  • Display Functions
  • Control Console
  • Options
  • Brochure
452XME3000
452XME3000
452XME3000
Download the 452 XME 3000 Brochure pdfdownload-628
