HARNESS

Mobile Harness - Swimming pool

Enquire

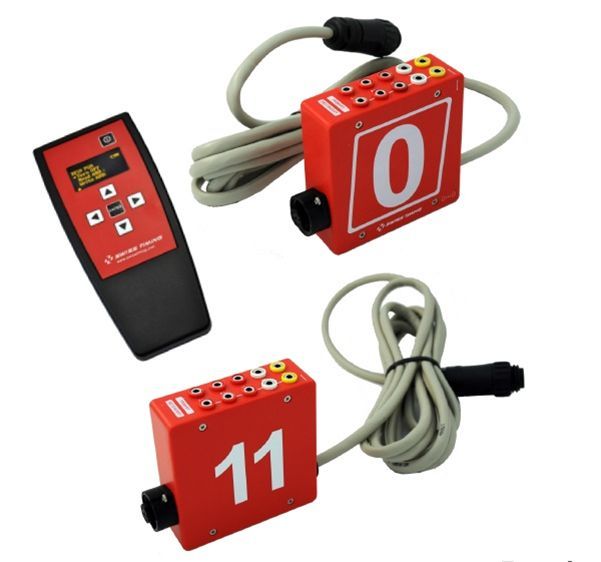

The purpose of the mobile harness is to connect the different elements (touch pad, starting block and pushbuttons) of a swimming lane to the timing system (Quantum).

The primary & secondary mobile harness has the same functions as the primary harness but it has an additional electronic circuit which enables it to double the timing lane when using a secondary (Quantum).

The mobile harness is made with a case which shows the number of the corresponding swimming lane and it is available from lanes 0 to 9. The side with the banana plugs is used for the connection of the contacts (touch pad, starting block and pushbuttons).

The banana plugs connected by a white line are the common feature; they are electrically connected inside the harness.

The codification of the water lanes is made by Swiss Timing before delivery.

In case of replacement on site, a programmer can be ordered.
  • Top features
  • Specifications
  • Options
  • Kit contents
  • Brochure
  • Weather resistant
  • Waterproof
  • Floor level maximum 4 mm, no risk of injury
  • Primary & Secondary
  • Stainless steel contact
  • Simple wiring contact screwed
Primary 3480.956 6 Lanes
Primary & Secondary 3480.966 6 Lanes
Primary 3480.958 8 Lanes
Primary & Secondary 3480.968 8 Lanes
Primary 3480.950 10 Lanes
Primary & Secondary 3480.960 10 Lanes
Weight :  Primary 0.760 gr
  Primary & Secondary 0.865 gr
Dimensions : 105 x 105 x 36 mm
Using temperature : 0 to +45 °C
Storage temperature : - 10 to +60 °C
3480.921 Harness programmer with Primary Harness

3480.922 Harness programmer with Primary & Secondary Harness

3480.923 Harness Primary (spare)

3480.924 Harness Primary & Secondary (spare)
  6 lanes 8 lanes 10 lanes
9072.6005 1 1 1 PC TRANSPORT CASE
3480.750 - - 1 PC PRIMARY LANE 0
3480.751 1 1 1 PC PRIMARY LANE 1
3480.752 1 1 1 PC PRIMARY LANE 2
3480.753 1 1 1 PC PRIMARY LANE 3
3480.754 1 1 1 PC PRIMARY LANE 4
3480.755 1 1 1 PC PRIMARY LANE 5
3480.756 1 1 1 PC PRIMARY LANE 6
3480.757 - 1 1 PC PRIMARY LANE 7
3480.758 - 1 1 PC PRIMARY LANE 8
3480.759 - - 1 PC PRIMARY LANE 9
3480.760 - - 1 PC PRIMARY AND SECONDARY LANE 0
3480.761 1 1 1 PC PRIMARY AND SECONDARY LANE 1
3480.762 1 1 1 PC PRIMARY AND SECONDARY LANE 2
3480.763 1 1 1 PC PRIMARY AND SECONDARY LANE 3
3480.764 1 1 1 PC PRIMARY AND SECONDARY LANE 4
3480.765 1 1 1 PC PRIMARY AND SECONDARY LANE 5
3480.766 1 1 1 PC PRIMARY AND SECONDARY LANE 6
3480.767 - 1 1 PC PRIMARY AND SECONDARY LANE 7
3480.768 - 1 1 PC PRIMARY AND SECONDARY LANE 8
3480.769 - - 1 PC PRIMARY AND SECONDARY LANE 9
3480.770 1 1 1 PC HARNESS TERMINATOR QUANTUM AQ
2872.003 6 8 10 PC INDIVIDUAL PUSHBUTTON OIT3-1T
1892.025 1 1 1 PC CABLE TU7PMC-TU7PFC 0.5 mm2 25 m.
9038.7047 1 1 1 PC SILICON PASTE RHODORSIL 100 gr.
DOC3480.500 1 1 1 PC MANUAL (.02) HARNESS QUANTUM AQ
Download an information sheet. pdfdownload-628
