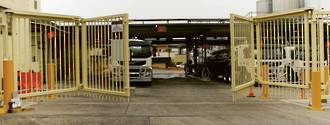

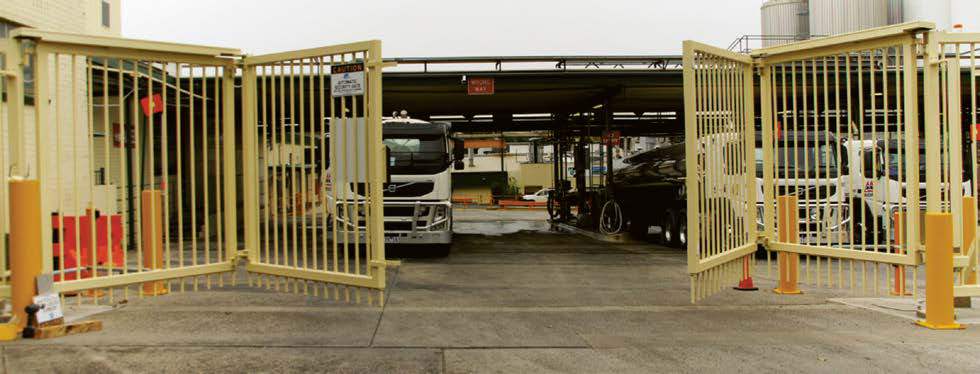

MSGB Bi Fold Speed Swing Gates

The MSGB bi fold speed swing gate provides maximum control of vehicular passage at security access points. The gate is designed for high end commecial and industrial applications particularly where opening space is limited.
Enquire

MSG Swing Gate DS 07 13 Page 1 Image 0006
Construction
Fully welded Australian made RHS  steel  is  used  in  the  gate  frame  and  support  posts, with 25 x 25mm RHS uprights. All fabricated steel is hot dipped galvanized for total protection and maximum life span. The design allows for single leaf spans of up to 8 metres. Powder coating is optional from a wide selection of powder coating colours.


MSG Swing Gate DS 07 13 Page 1 Image 0007
Drive System
Our standard speed drive systems incorporates a 3 phase drive motor with PLC and invertor control.  Under power failure conditions the gate can be easily released for manual operation.
MPH Speed Gate safety
Safety Devices
Standard safety devices include PE beams, inductive loop detectors and signage for use on automatic gate systems.  Optional safety devices include flashing lights and audible alarms.
MSG Swing Gate DS 07 13 Page 1 Image 0003
Accessories
A variety of accessories are available such as climb protection - spikes, barbed wire and pressed spears; uninterrupted power supply, steel cladding and chain wire mesh. Bi-parting gates can also be applied to wide roadways. Gates can be locked by magnetic or mechanical locking devices. Dual gates can also be applied to wide roadways.
  • Brochure
Download an information sheet: pdfdownload-628
